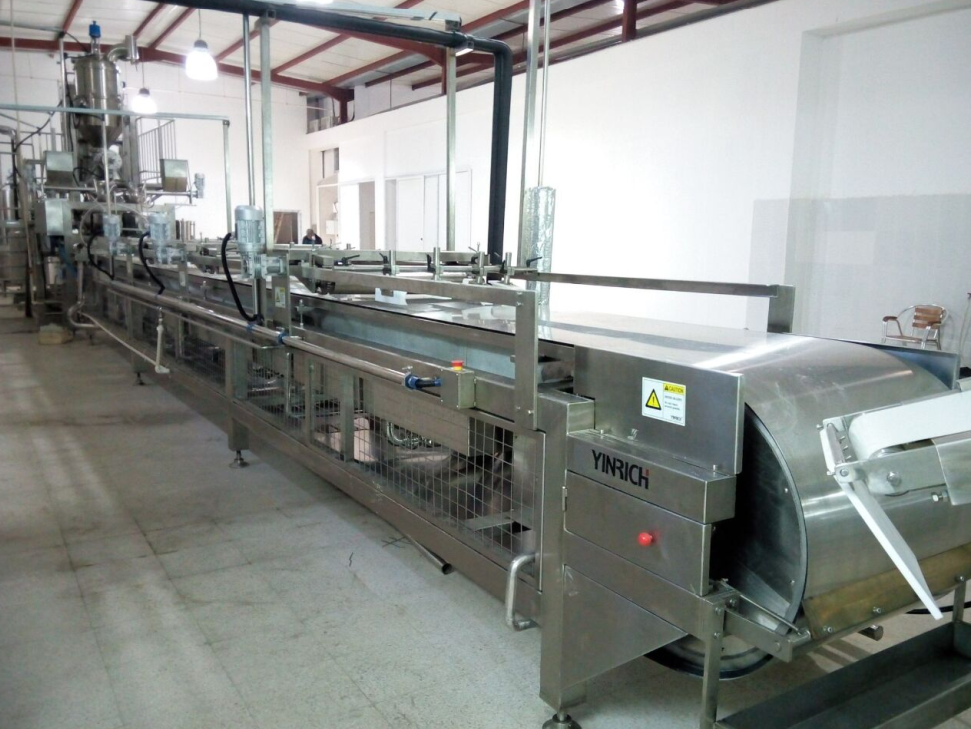

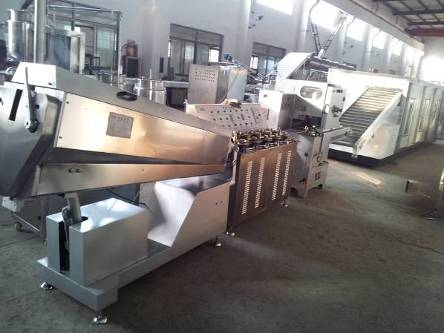

Automatic hard candy die-forming line– High-Speed, Precision Molding

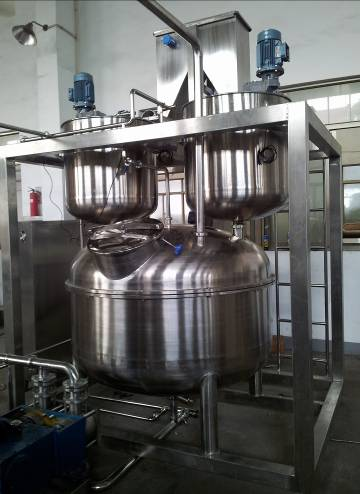

Weighing system Highlight :YINRICH’s AWS COOLMIX offers automatic weighing , mixing and feeding of raw materials with inline transportation to one or more cooking units, without heating or pre-dissolving.

Highlight :

●YINRICH’s AWS COOLMIX offers high accuracy, easy recipe selection, dosing of all types of raw materials by weight, and capacity ranging upto 5000kgs/h

●Control system: The whole process is under an automatic version with PLC control system, and the touch-screen operating A sophisticated control system integrated the weighing cycles in recipe handling directly coupled to process parameters.

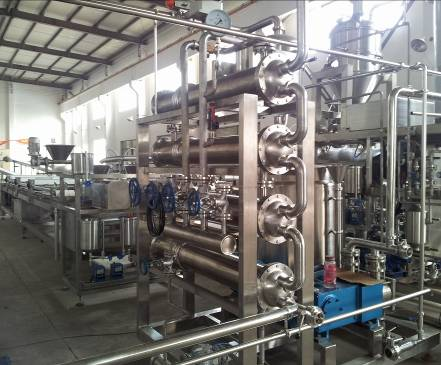

After weighed , the materials are blended and mixed in the mixing vessel . Once the total ingredients are fed into the vessel, after the mixing, no need to be heated. The batch mass is pumped by feed pump through a special heating exchanger and heated upto a required temperature at an adjustable counterpressure (which is called pressure dissolving).In this process ,the batch is heated up without evaporation and completely dissolved.  Then  it will goes to a flash-off chamber.

Highlight :

●Sugar crystals are dissolved at an adjustable counterpressure by means of a self-developed pressure-holding valve. In the unit, the batch is heated up without evaporation ,but completely dissolved, and comes out a 70~90% syrup.

●Dissolving, no cooking. The whole dissolving process is short, the syrup will be no burnt-out under a relative low temperature. The syrup is clear and transparent .That is the core of making final good quality products.

●Energy saving upto 40% in the dissolving process under RDS system.

●Continuous production. All requirements for depositing /die-forming can be met.

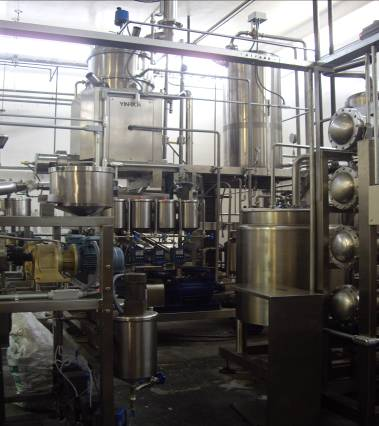

The plant is comprises of cooker, flash-off chamber, feeding pump, discharge pup, vacuum system, and automatic steam control system. All the cooking parameters are controlled via a PLC controller. The mass are transported via the loading and unloading pumps controlled by frequency inverters.

Highlight :

●Installation for carefully controlled and continuous production of high boiled sugar masses based on a two phase working cycle, cooking and vacuuminizing .The plant offers high flexibility in producing different sorts of hard candies;

●The plant is capable of producing a variety of masses, plain hard candy, as well as sugar-free masses;

●Vacuum flash-off chamber with the provision for lactic acid feeding;

●The plant offers a light colored mass for milky products, can make the candy more clear ,no air bubble inside;
