GDQ600 series Double layer jelly candy depositing line is an advanced and continuous plant for making different sizes of gelatin or pectin based soft candies(QQ candies) . It is an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.It make double layer jelly candy with 4D jelly candy moulds.
#Gummy Candy Making Machine #Gummy Candy Depositing Machine
The fully automatic 4D double-layer jelly candy casting production line can produce high-quality single-color jelly candies, double-color jelly candies, two-layer jelly candies, 3D fruit jelly candies, and 4D three-color sandwich jelly candies. The soft candy pouring production line consists of a sugar dissolving tank, a syrup pump, and a storage room. Tanks with filtration systems, vacuum cookers for fudge, buffer tanks, depositing machines with cooling tunnels. There are 2 chillers at the top of the cooling tunnel to ensure the best cooling effect.

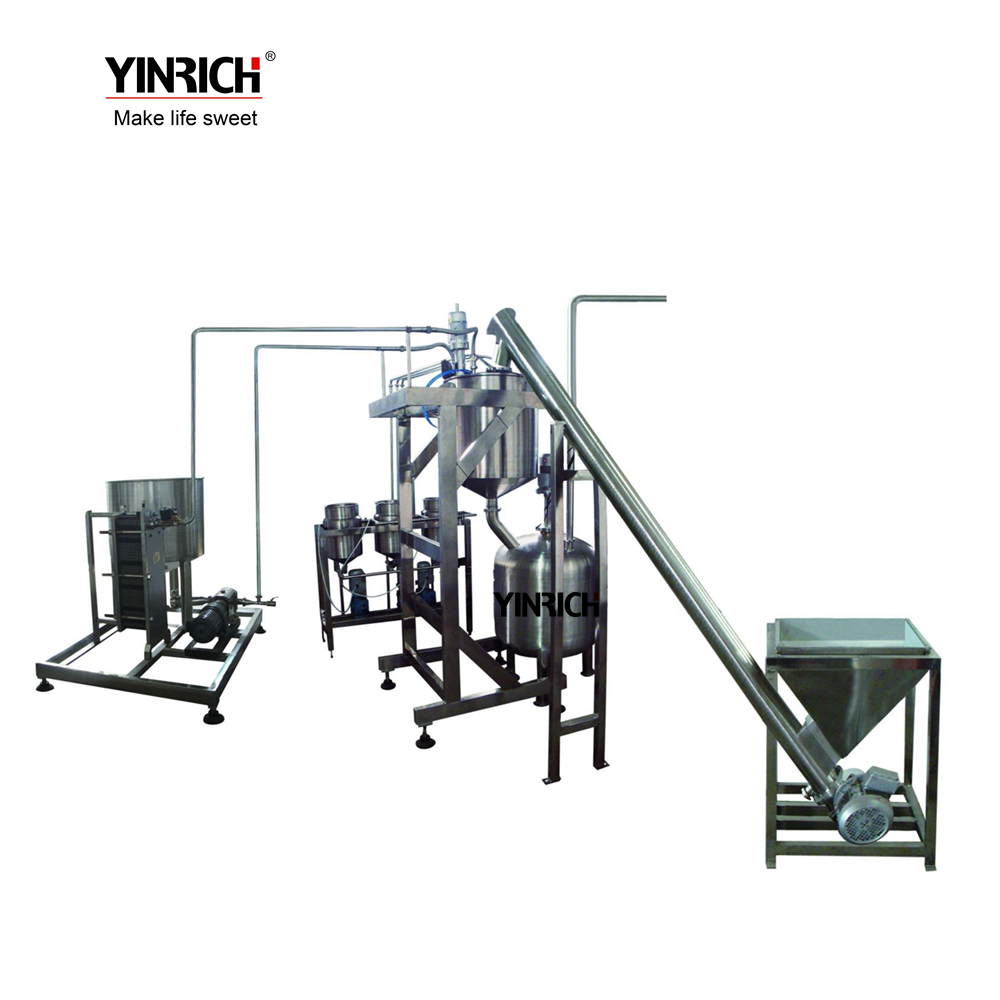

This consist of Gelatin dissolving tank ,
Gelatin dissolving tank ,Gelatin transporting pump
Hot water tank and water pump system for providing the hot water to keep warm for tanks
Sugar hopper & elevator
Weighing vessel (for automatic weighing water, sugar, glucose, gelatin solution)
mixing tank ,Discharge pump
All the connecting pipes, valves, frame, and etc,automatic PLC control system

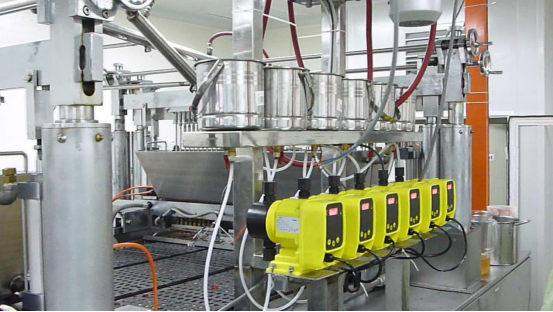

This part consist of Flavor liquid storage tank and dosing pump
Color liquid storage tank and dosing pump
Citric acid storage tank and dosing pump
Dynamic mixer
All the connecting pipes,valves,frame

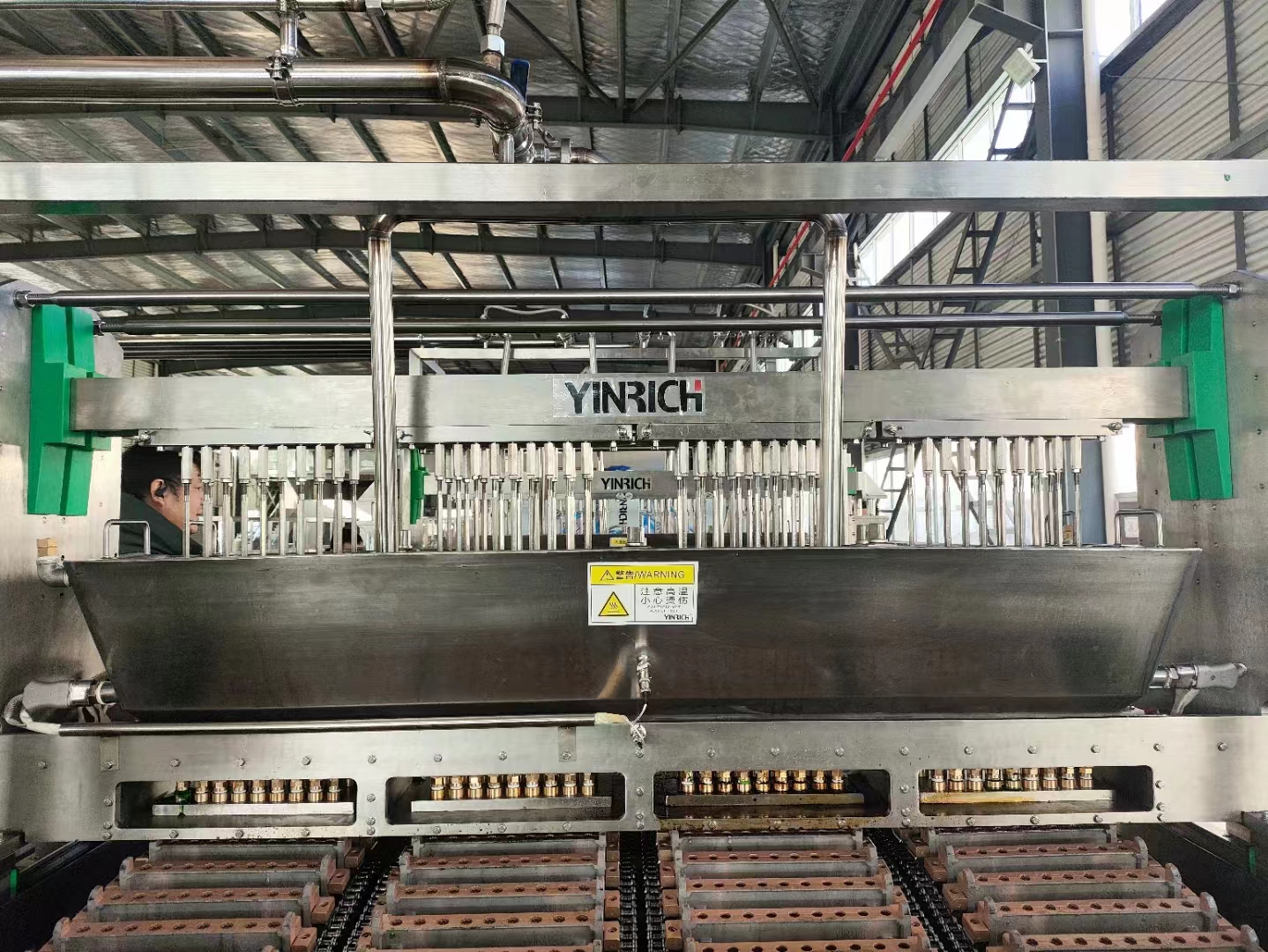

This part consist of Jelly candy Depositor ,Main drive and Mould carrier conveyor,Air-conditioner, and fan system,Discharge conveyor,De-moulding device,Cooling tunnel,PLC control system,Mould oil sprayer system
