PLC controlled Macaroon filling and capping machine
×
Macaron machine
2025-07-18
Technical data
Total cookies per line : 12 pcs of cookies
Total width of the cookies: (45mm+18mm)x11+ 45mm=738mm
The width of the belt: 800mm
The depositng recycling speed: 15~20 times/min
Filling Speed of cookies: 20 x 12=240 cookies/min
Capping speed: 40 times/min
Speed of sandwiches: 240 macaroons/min
Total output : 240 sandwiches/min x60min=14400 per hour
Function:
Bottom flipped: yes
Deposit filling: cream
Electrics: 380 volts 3 phase 50 Hz
Main Equipment
Macaroon filling and Capping Machine
A: Cookie manual feeding table
1. Automatic Cookie aligner
2. Storage and waiting for release stage
3. Automatic Flip-slide device
4. Biscuit indexing and position device
5. Detecting device
6. Cream depositer
7. Capper
8. Conveyor and transporting system and main drive system
9. PLC controll system
B: Finished product’s outgoing and cooling
1. U turn conveyor
2. Cooling tunnel

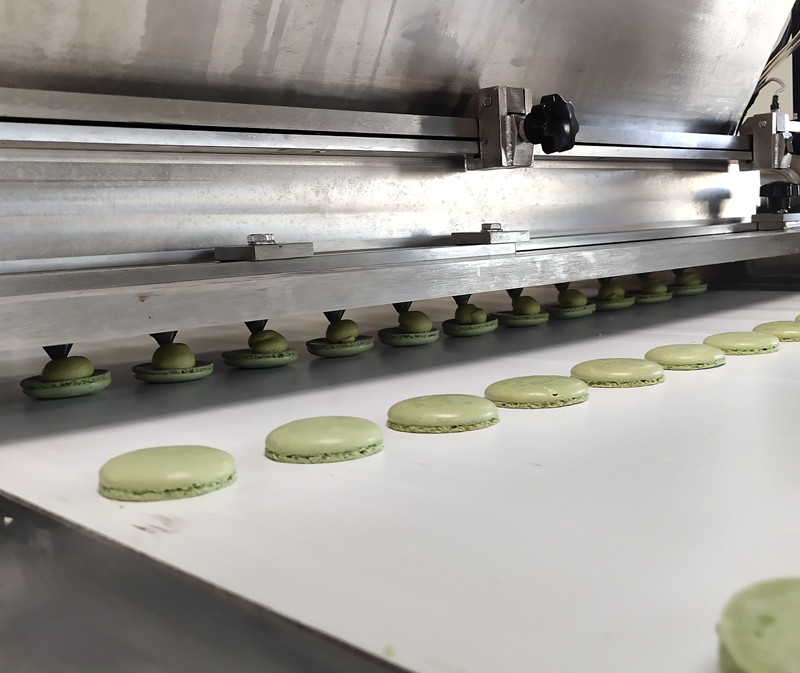

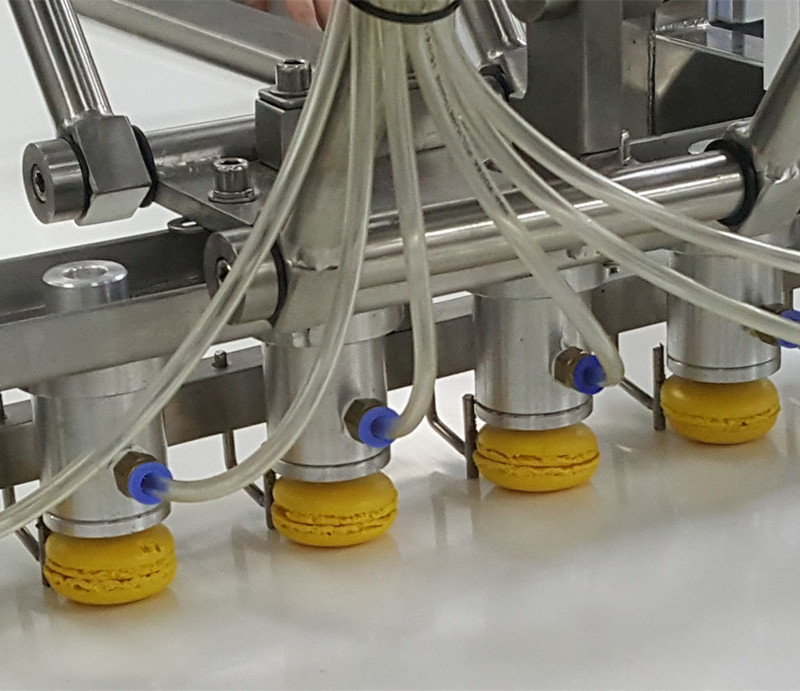

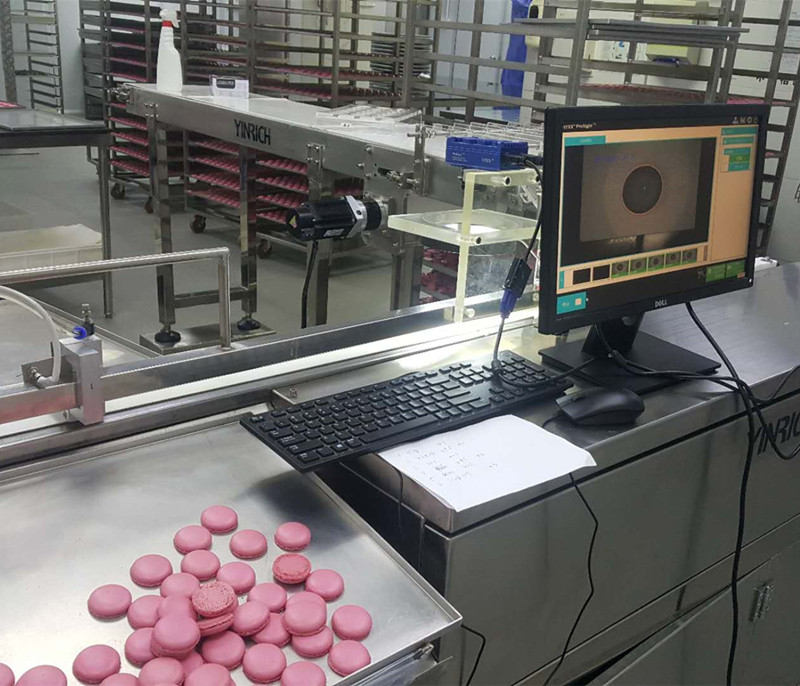

Product image
