Continuous Chocolate Moulding Line - Small Coating Machine
The QJ series chocolate moulding line can continuously produce various kinds of chocolate products. It is a PLC controlled machine which consists of mould heating, depositing, vibrating, cooling, de-moulding and etc.. It can produce out good quality chocolate products such as “two color”, “ central filling”, and Pure solid chocolate products.
Product features
Enhance your chocolate production process with our small chocolate coating machine. This continuous chocolate moulding line ensures efficiency and precision in coating chocolates, making it a crucial tool for small-scale chocolate manufacturers. With its compact design and user-friendly interface, this machine delivers consistent results to meet your production needs.
Team strength
Our Continuous Chocolate Moulding Line - Small Coating Machine is a testament to our team's strength and dedication to providing high-quality chocolate processing equipment. With years of experience and expertise in the industry, our team has meticulously designed and manufactured this machine to meet the needs of small-scale chocolate producers. Our core attributes of precision engineering, durable construction, and user-friendly operation showcase the skills and knowledge of our team members. Furthermore, our value attributes of reliable performance, efficient production capabilities, and exceptional customer support highlight the passion and commitment of our team to deliver excellence in every aspect of our products.
Why choose us
Our Continuous Chocolate Moulding Line is enhanced by our team's strength in innovation and expertise. With a small coating machine perfect for small-scale production, our dedicated professionals work together seamlessly to ensure top-quality results. Our team's commitment to excellence and attention to detail allows us to provide a reliable and efficient chocolate moulding process, resulting in consistent, delicious treats every time. Whether you are a small business or a passionate home cook, our team's strength ensures that you can create beautifully coated chocolates with ease. Trust in our team's knowledge and dedication to elevate your chocolate-making experience.
chocolate mould line have different models with different capacity.
Main Equipment list:
| Item | Equipment | specification |
| 1. | HOT WATER CIRCULATING TANK | |
| 2. | OIL MELTING OVE | RYG-30 |
| 3. | SUGAR GRINDER | FTY250 |
| 4. | CONCH | JMJ50 |
| 5. | WARM KEEPING TANK | BWG500 |
| 6. | Chocolate moulding plant(one shot head) (INCLUDING THE COOLING TUNNEL) | QJ150 |
| 7. | TRANSPORTING PUMP | SJB32 |
| 8. | CONTROLLE | |
| 9 | MOULDS | |
| 10 | CONNECTING PIPES &VALVES | |
| 11 | packing machine | BM280 |
Appendix: TECHNICAL SPECIFICATIONS FOR EACH EQUIPMENT:
1. OIL MELTING OVEN
Technical specifications:
Oil melting capacity: 2 x120=240kgs
Oil melting time: 30~60min
Heating method: Steam and power heating
Oil melting temperature: 40~65C
Dimension: 1300 x 650 x1000mm
2. SUGAR GRINDER:
Technical specifications:
Main drive motor power: 7.5KW
Feeding motor power: 1.5KW
Main drive speed: 3800 rpm
Feeding drive speed:280rpm
Dimension: 1240 x 960 x 1730mm

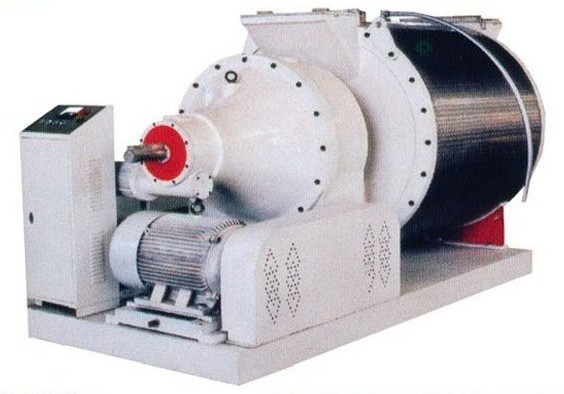

3. CONCH
Model: JMJ500
Max. capacity: 500liter
Fineness :20~25um
Main drive speed: 33rpm
Fine milling time: 16~22 hours
Power: 15KW
Dimension: 2000 x 1860 x 1250mm
Model: JMJ1000
Max. capacity: 1000liter
Fineness :20~25um
Main drive speed: 33rpm
Fine milling time: 14~22 hours
Power: 22KW
Dimension: 2700 x 1350 x 1800mm

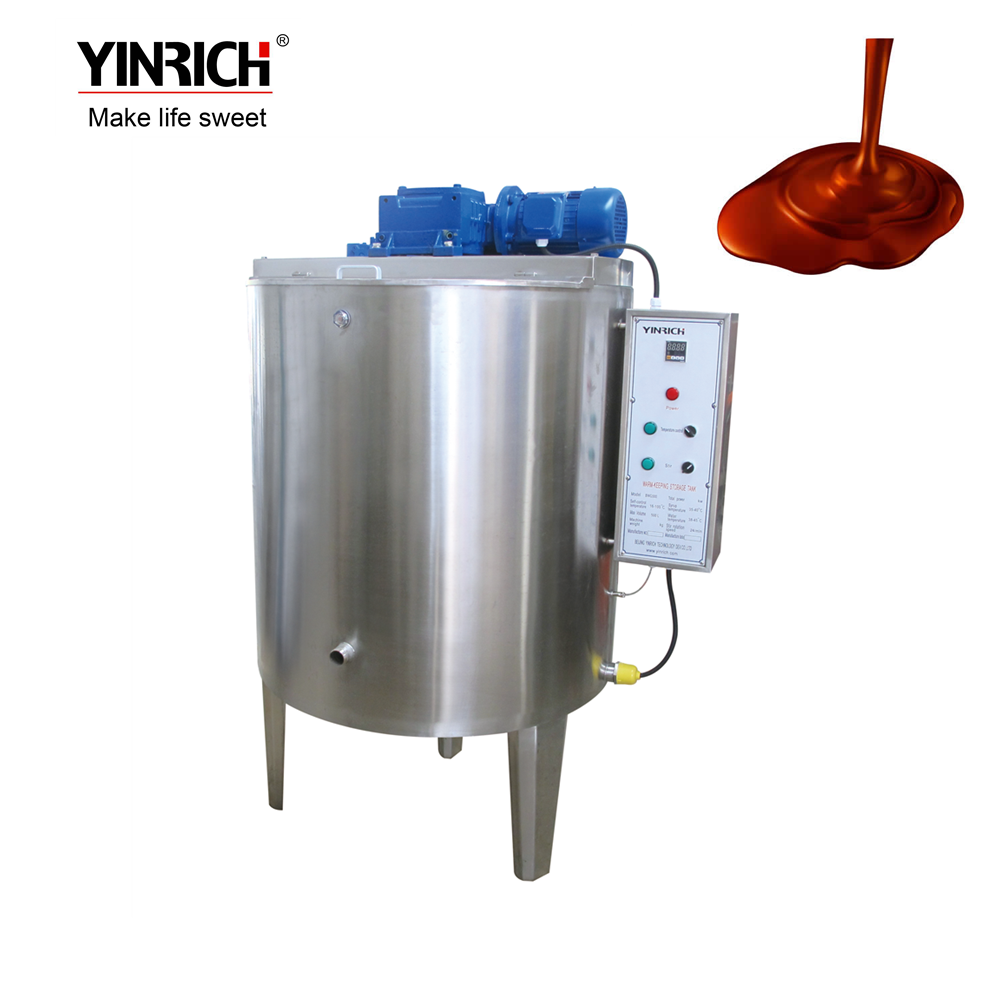

4. WARM KEEPING TANK
Model:BWG500
Max. capacity: 500liter
Main drive speed: 23.5 rpm
Power: 1.5 KW
Dimension: dia.1000 x 1380mm
Model:BWG1000
Max. capacity: 1000liter
Main drive speed: 24 rpm
Power: 2.2KW
Dimension: dia.1250 x 1850mm
5. CHOCALATE DEPOSITER WITH COOLING TUNNEL(one head version)
Model: QJ150(old)
Technical specifications:
Production capacity: 0.8~2.5tons/h
Power: 21KW
Refrigerator ‘s capacity: 15000~21800kcal/h
Dimension:15330 x1210 x 2200mm
Pieces of mould plates: 220 pcs

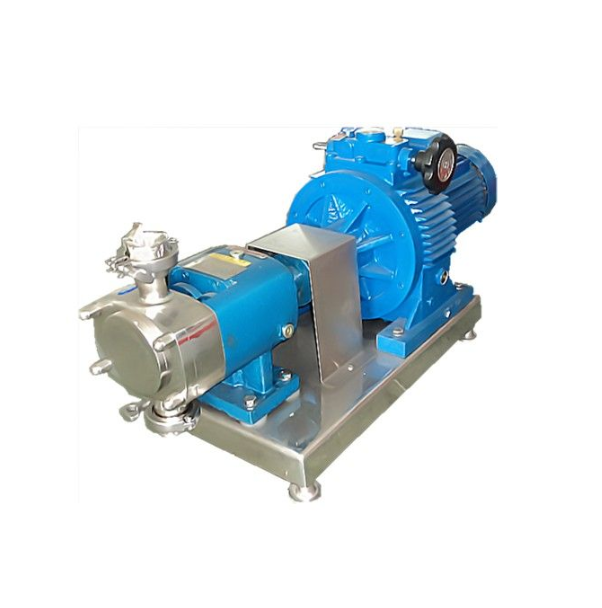

6. CHOCALATE TRANSPORTING PUMP
Model:SJB32
Motor power: 1.5KW
Main drive speed:127rpm
Capacity: 32liter/min
Length of Pressure: 2m
Dimension: 800 x 390 x 350mm
DELIVERY DATE:
Within 60 days upon the receipt of the down payment
DELIVERY:
Ex. Our Works at Shanghai, China
TERMS OF PAYMENT:
40% by T/T as the down payment, the balance of 60% shall be pay before shipment.
OTHERS:
Testing & training:
The plant layout design, assembling and installation, start-up and local team training will be FREE at no cost. But the buyer should be responsible for the round-air tickets, local transportation, board & lodging ,and US$60.-/day/person for the pocket money to our technicians. The testing people will be two persons, and will cost 20~30 days.
Utilities:
The buyer should prepare sufficient electric power, water, steam and compressed air supplies which are suitable to be connected to our machinery before the arrival of our machinery.
WARRANTY:
The seller guarantee the quality of the products for 12 months since the date of installation . During the warranty period, any problems/defaults happen on the hard parts of the machinery ,the seller will replace the parts or send the technicians to go to the buyer’s site for repairing and maintenance at FREE. If the defaults are aroused by the defaulted operations of the buyer, or the buyer need the technical assistance for the processing problems, the buyer should be responsible for all the cost and their allowance.
