Hard candy depositing line for butter scotch
Remark:
1) The parts which contact the food are made of SUS304;
2) The frame and body cover are made of Stainless steel
3) Servo motors: TECO; COTRUST
4) Inverters: Danfoss, LG
5) Refrigerator : Danfoss
6) PLC: COTRUST ,SIEMENS
7) Touch screen: SIEMENS,COTRUST
8) Relay: SIEMENS or OMRON
1.FEATURES:
This machine is hard candy depositing line.
1. This machine can produce different kinds of deposited hard candies, jelly candies, toffees and other candies .
2. This machine has compact structure ,stable performance and easy control.
3. The depositing volume can be adjusted optionally. This machine can run with stepless speed adjustment as per the requirement.
4. This machine is installed with the automatic mould tracing and detecting device.
5. This machine is controlled by PLC program setting which can let the machine running smoothly and accurately.
6. Compressed air or servo motor is the power for the machine’s running, and It can make the whole surrounding of operation to be sanitary, cleanliness and meet the requirement of GMP.
It uses the electrical heating/or gas cooker, and does not need a steam boiler. It is suitable for the initial investment.
2.Main Technical Specifications:
Output capacity: 150kg/h
Available candy weight : 2~6g/pc
Total electrical power : 8.5KW/380V
Depositing speed: 15~35 strokes/min
Gross weight: 3500KG

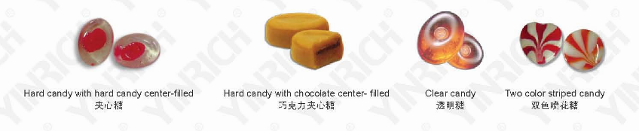

3. Products can be made on the plant:

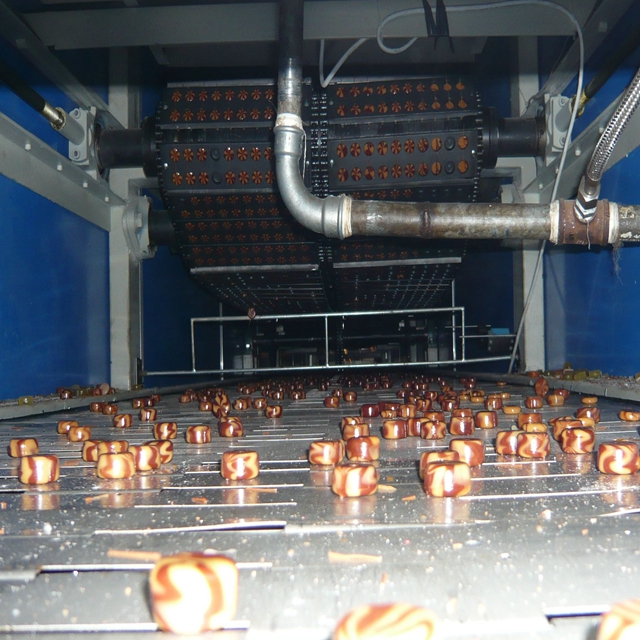

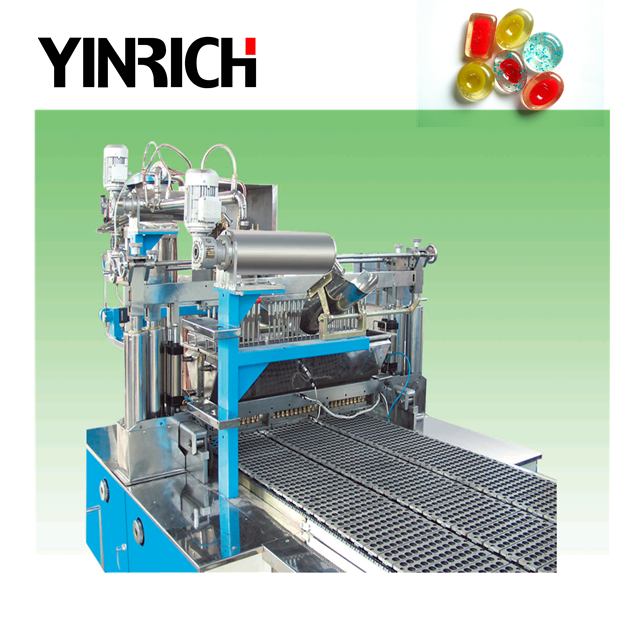

4.Machine photo shows
