Highly versatile high-speed pillow packaging machine, suitable for fully automatic packaging of various types of candies, soft candies, bubble gum, chocolate bars and round stick products, puffed foods, etc.
×
SW-300A Automatic Pillow Type Packing Machine
2023-08-23
Application of pillow packaging machine
This pillow packaging machine is suitable for full automatic packing round bar products, puffed food etc.
Production work flow : rotary table feeding--conveying--arranging--pillow type packing
Characteristic:
1. Advanced full servo control system with simple transmission structure, low failure rate and smooth running of low noise.
2. It can directly connect the production line, making the feeding, molding, filling and sealing process become automatic and improve production efficiency reduces cost.
3. The control system adopts the high quality electrical components, the touch screen shows, the good machine interface, the operation is simple, intuitive, convenience.
4. With automatic membrane feeding device, it can change the packaging film without stopping and improve the production efficiency.
5. The material belt can realize the no-tool quick disassemble, and it is equipped with a slag trough below the belt to facilitate the maintenance and cleaning and saving time and saving effort.
6. There are automatic packaging automatic detection system, which can realize no empty package, and the packing rate reaches 100%.
Packing Range of Yinrich pillow type packing machine
The packing product size: L20-150mm W 10-60mm H 8-30mm
Film width: 300mm
Specification of pillow packaging machine
Model | SW-300A |

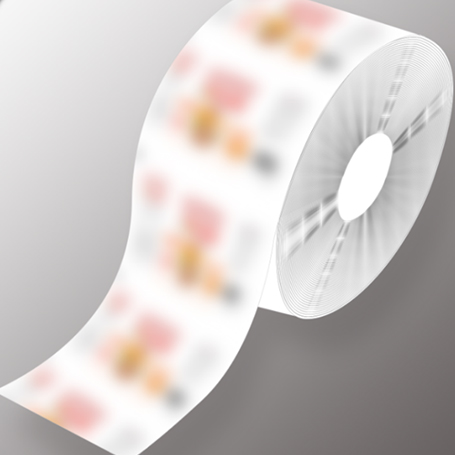

Suitable packing material | OPP,CPP,PETA,Aluminum plating film, Aluminum plastic film, waxed paper, single and double layer heating sealing material |
Packing speed | 50-800 bags/min |
Film width | Max.300mm |
Bag size | L:20-150mm W:10-60mm H:8-30mm |
Roll film diameter | Max.380mm |
Voltage | 380V 50Hz 6kw |
Machine dimensions | L4800*W1150*H1580MM |
Weight | 3000kg |
Remark | It can be equipped with coding device and filling air device |
Pillow type packing machine display

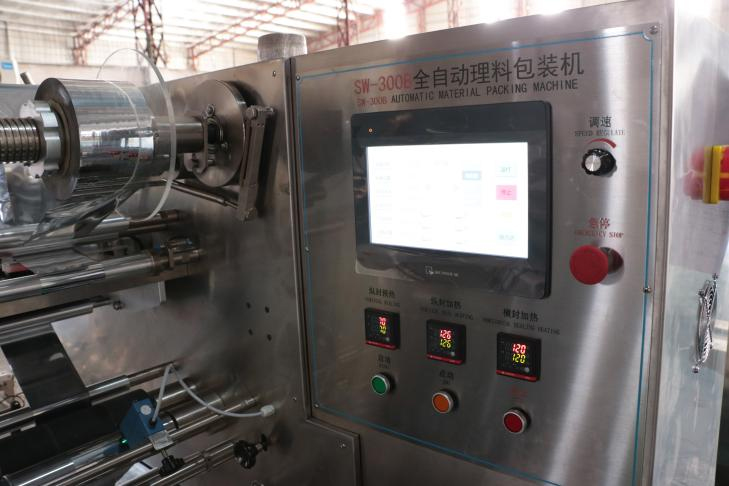

● PLC control system, 10 inches screen.
● Three temperature controller, horizontal pre-sealing, horizontal sealing and vertical sealing, to control the sealing precisely, provide the high packing speed, and the beautiful packaging.
● Button, start, jog, stop.

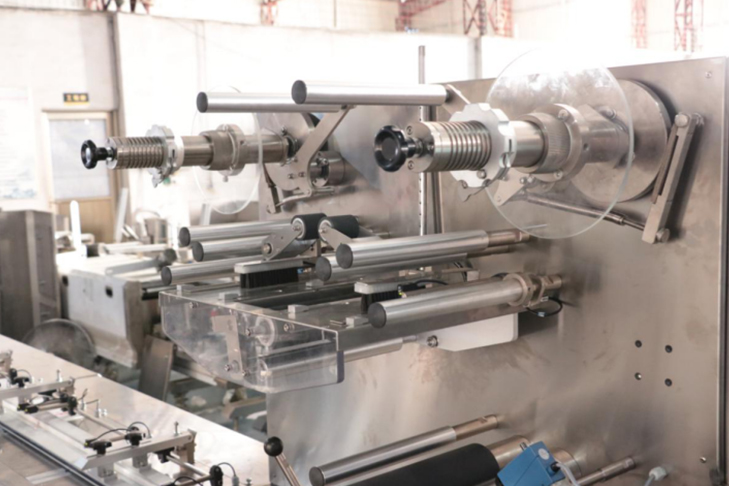

● With double package rollers and can equip paper splicer system, the wrapping package can be used continuously without stopping machine.
● Automatic membrane feeding device, it can change the packaging film without stopping and improve the production efficiency.
● There has an servo motor to control the pull film function.
● The sensor to confirm if the film is finished.

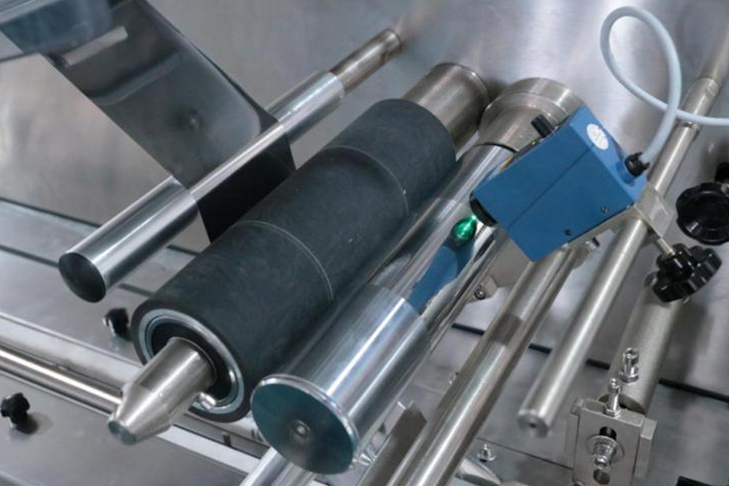

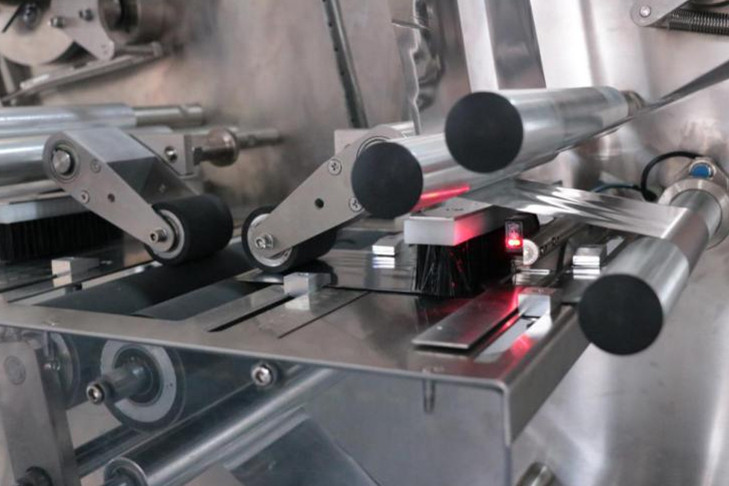

● The eye mark sensor.

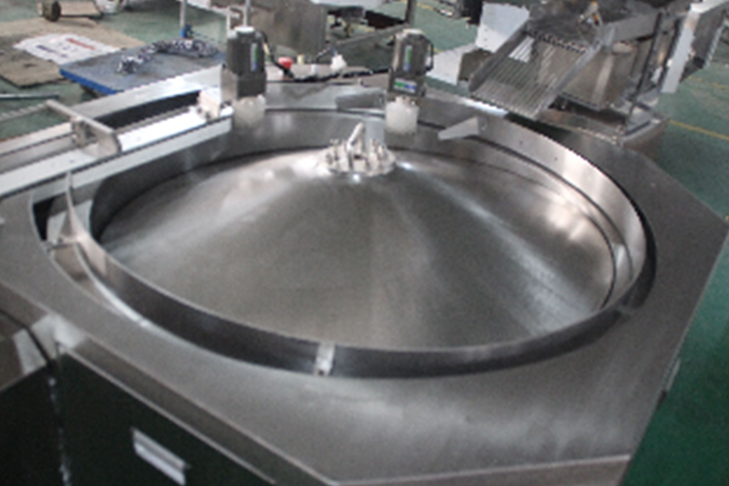

● Adopt the inclined centrifugal disc.
● Four frequency converters control the dis speed.
● The advantage about the disc:
A. It would not hurt the material secondly
B. Greatly improve the original nature of packaging materials
C. There would not have the empty bags if the material is enough
D. If there the material is finished in the disc, the disc will be send the signals to machine and stopped at the same time, and notice that the workers need to put some materials
E. If there add the production line, the machine will be able to greatly uninterrupted production packaging.

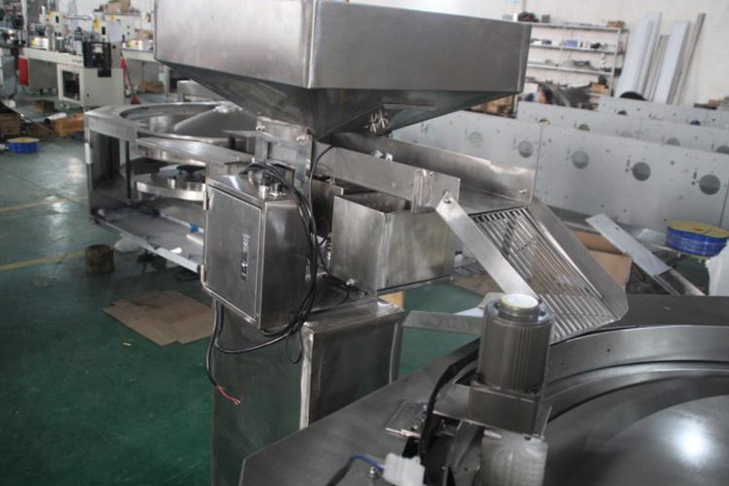

● Oil and broken material hopper.

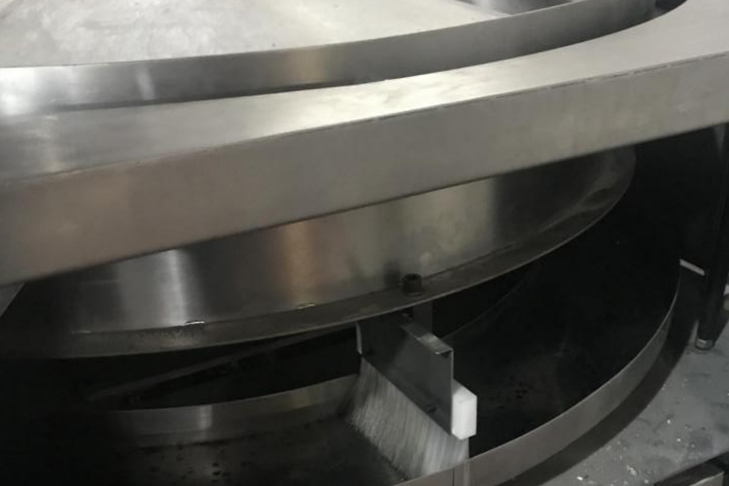

● Oil material's brush.
● During the rotating process of the equipment, some oil material will be residues and drops, and the oil or the spice will be fallen down in the material’s recycle disc, and the brush will be automatically cleaned to the material outlet.
● It is convenient for users to carry out treatment or secondary processing
● With the feeding vibrator, to feeding more evenly.
● There has a sensor here to confirm if there has the enough material in the disc.

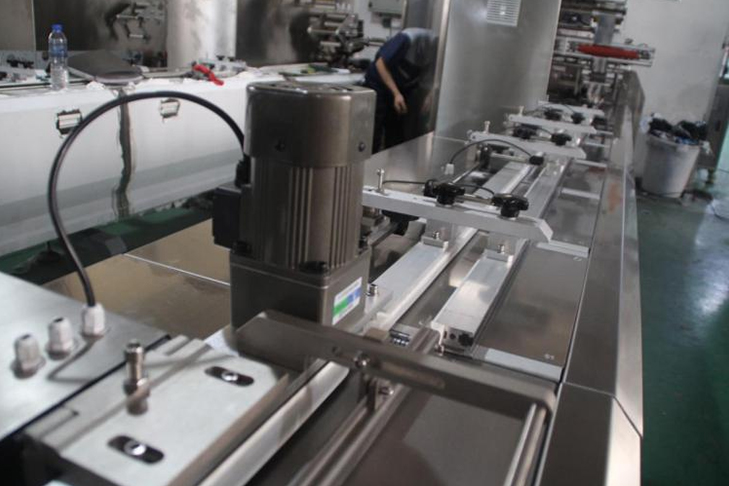

● 6 pieces servo motors to control the belt speed, brand is Panasonic from Japan.

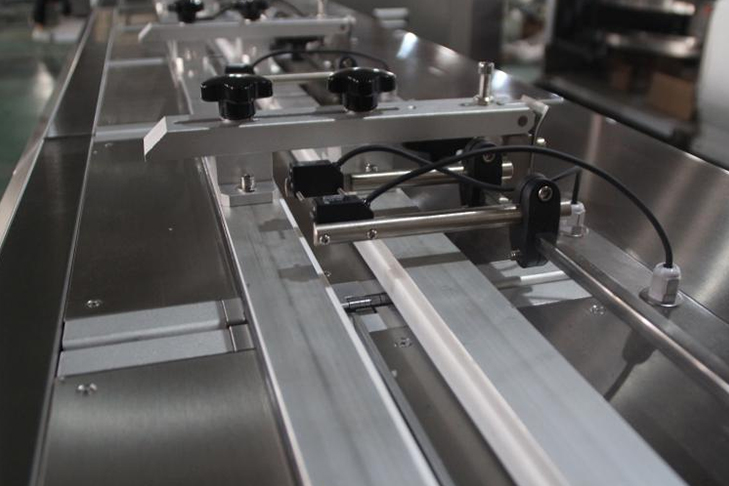

● Fiber sensor, to sensor if there has the material here, if no, it will stop and wait the material.
● Former, made for the customer according to the material
● There has one servo motor to control the sending materials function

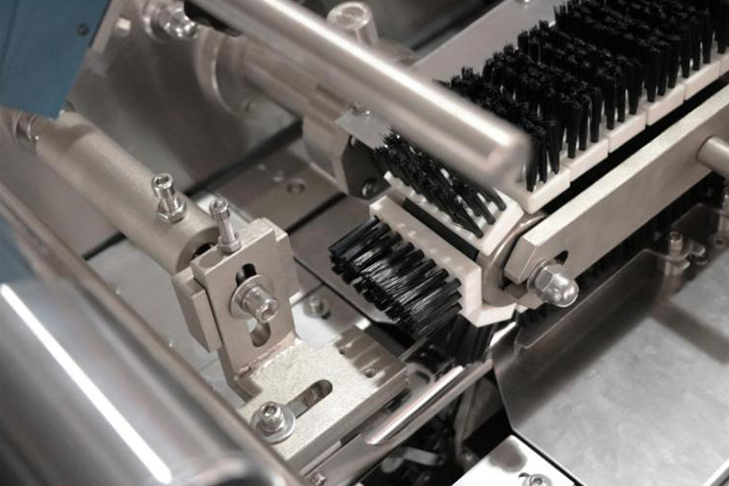

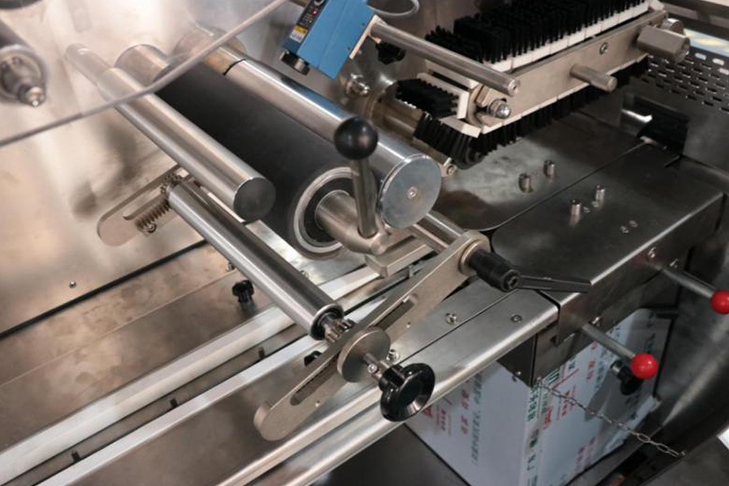

● Brush, to flat the packing film, protect the sealing beautiful and flat

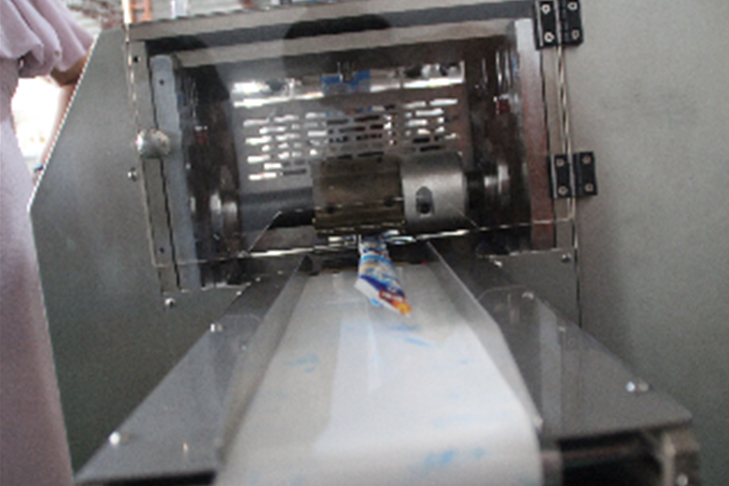

● Cutting knife, will according to the sample size, and bag length, the bag length will decided the cutting knife, the cutting knife will decided the packing speed.
● Control by the servo motor, to keep the high cutting speed.
● Finished product conveyor.

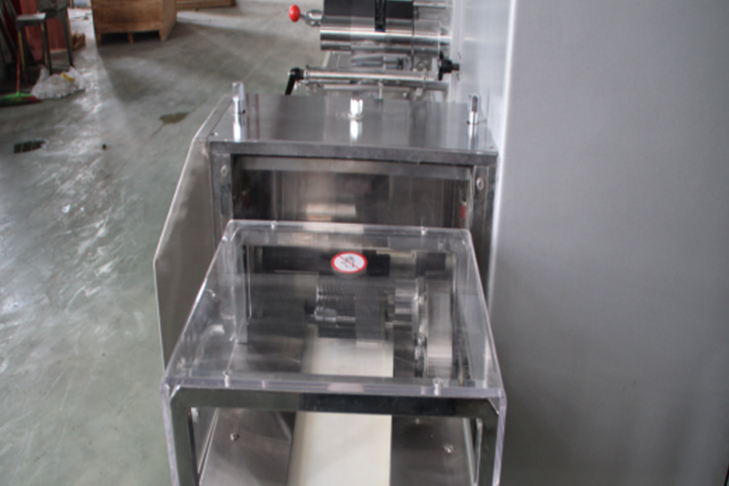

● With a PMMA cover

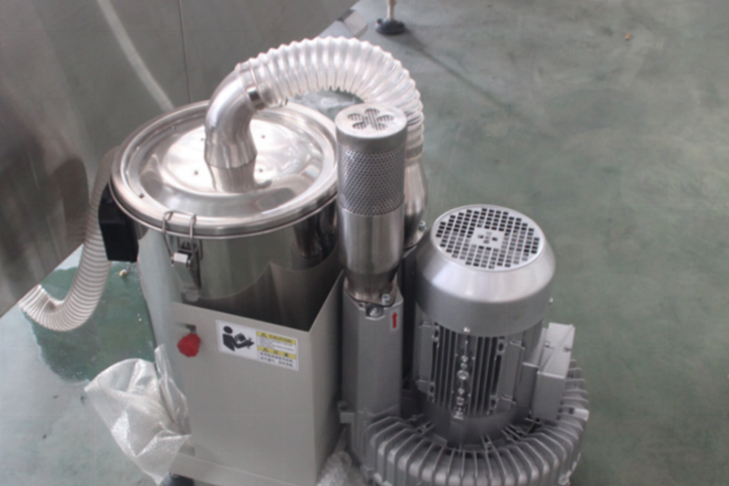

● Vacuum cleaning and broken material recycling.

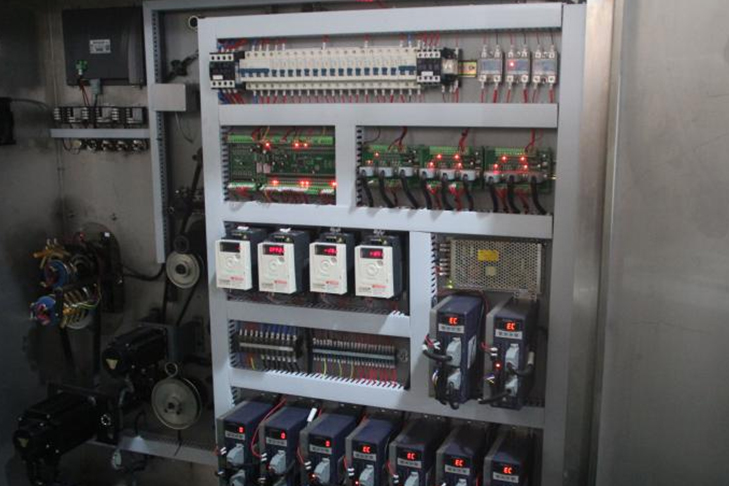

● Electric box.
● Nine servo motors.
Configuration
Device Configuration | |
Touch screen | Taiwan Weinview |
Servo motor | Riding |
Frequency converter | Siemens |
Power switch | Panasonic |
Pneumatic element | Taiwan Airtac |
Electrical elements | Schneider |
