Capacity: approx. 500~600kgs/h
The processing line is an advanced and continuous plant for making different sizes of gelatin or pectin based soft candies (QQ candies). It is an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.It can make with flat 2D mould or 3D moulds, it based on customer specific requirement .
Yinrich jelly candy depositing line

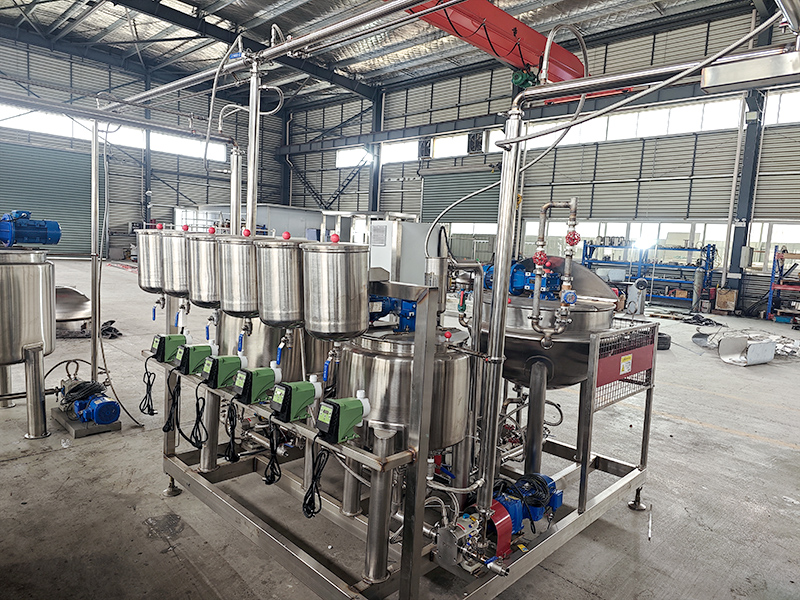

YINRICH's BJC500 Batch wise jelly mass cooking system offers a feeding, cooking and mixing of raw materials for all type of continuous jelly candy production.
● Full stainless steel SUS304 made;
● Flexible: Design and construction of the cooking and mixing for preparing all types of jelly mass, such as pectin , galantine, agar-agar, starch, gum Arabic, etc.)
● Compact and modular in construction and features central connections for services (steam, air, water, electricity) resulting in a short start-up time.
Accurate metering system with plunger type pump driven by a common variable speed unit for the injection of the liquid additives (flavor, color, and acid) The additives are thoroughly mixed into the cooked mass by jacket stainless inline static mixer; In FCA system, it ensures that the end product will always be of a consistent and high quality; Compact design, and fully automatic operation.
C: Depositing and cooling section
● Underband Servo-drive designed depositer: All drive components are mounted on the machine (underband) rather than on the depositing head.
● The unique design is in compact and simple, which can reduce the movement inertia and weight of the depositing head, thus it can achieve higher the depositor's running speed to maximise output capacity.
● Machine is hydraulic free, thus to avoid risk of oil leakage onto the products.
● Simple maintenance requirement.
● Three axis servo control ensures the complete control over the depositing process.
Gummy Candy can made by GDQ600 jelly candy depositing line
YINRICH® is the leading and professional exporter and manufacturer in China
We provide high-quality confectionery, chocolate and bakery processing and packaging machinery.
Our factory is located in Shanghai, China. As the top-leading corporation for chocolate and confectionery equipment in China, YINRICH manufactures and supplies a complete range of equipment for the chocolate and confectionery industry, ranging from single machines to complete turnkey lines, not only advanced equipment with competitive prices, but the economical and high efficiency of the whole solution method for the confectionery machines.
\
