The cookie capping machine is designed to ensure uniform filling and accurate weight of sandwich biscuits, with extremely high automation efficiency. Yinrich matches a very successful cookie capping machine production line for your factory.
×

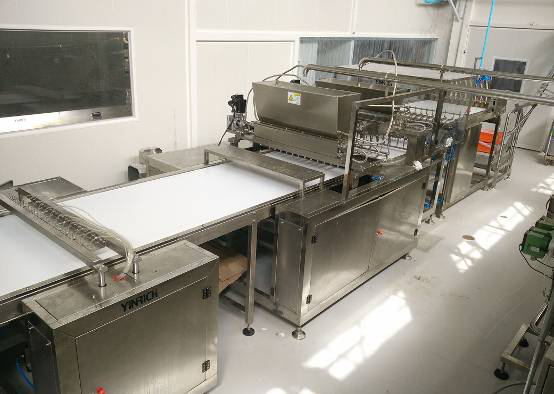

Automatic cookie capping machine-JXJ400 Series
2025-01-09
JXJ400 cookie capping machine
Features
This cookie capper can be connected to the outlet conveyor of the biscuit plant, and it can automatically align, deposit and cap . Various types of soft and hard biscuits ,cakes can be processed .

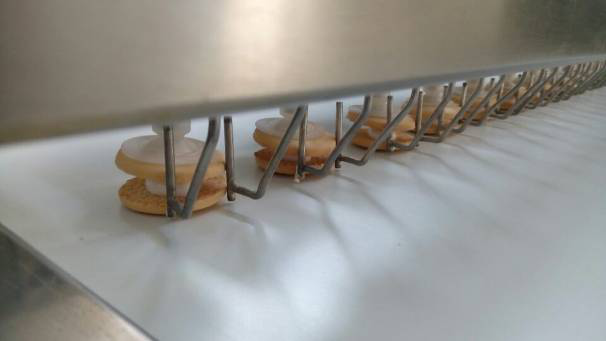

The cakes or biscuits are automatically transferred from your exiting conveyor to the in- feed of the machine( or via a Biscuit magazine feeder and indexing system). The machine then aligns, accumulates, synchronizes the products, deposits an accurate amount of filling, and then caps the top onto the products. The sandwiches are then automatically transported to the wrapping machine, or to an enrobing machine for further process.
The machine consists of
1) Biscuit or cookies infeed section/ or biscuit magazine feeder;
2) Flip-slide section (optional) ;
3) Depositing manifold(plain, center-filling, side-by side etc, as optional);
4) Capper;
5) PLC controller
Advantages
-Available for various kinds of filling or capping biscuits or cakes;
-PLC Servo controlled ，high speed capacities;
-Available to be connected to the conveyor of biscuit plant;
-Precision depositing on the cookies;
- Deposition variations:
● marshmallow
● aerated chocolate
● caramels & toffee;
● jams and jellies;
● fresh & Non-dairy cream;
● Butter & Margarines;
-Low labor cost, Quick pay back
Main Technical Specifications
Depositing speed: 25 times/min
Capping speed: 50 capping /min
Depositing heads: as per the customer’s
Power: 380V/20KW
Dimension: L:6000 xW: 800 x H:1600mm
